Description

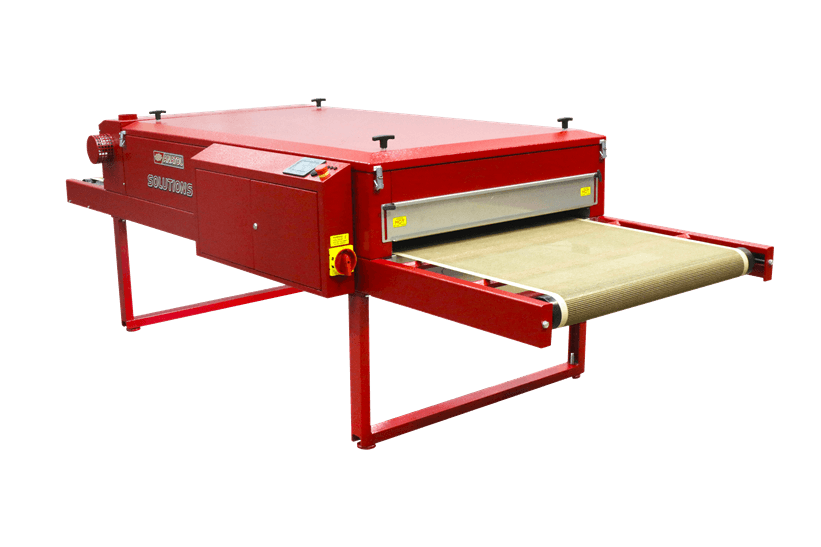

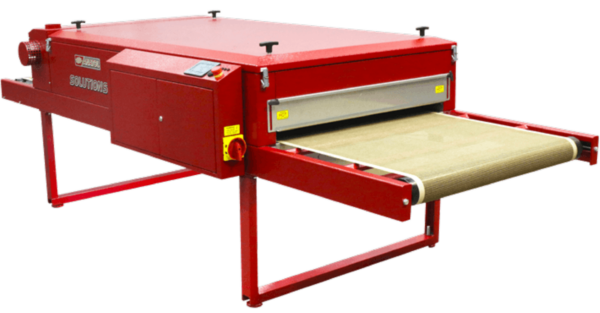

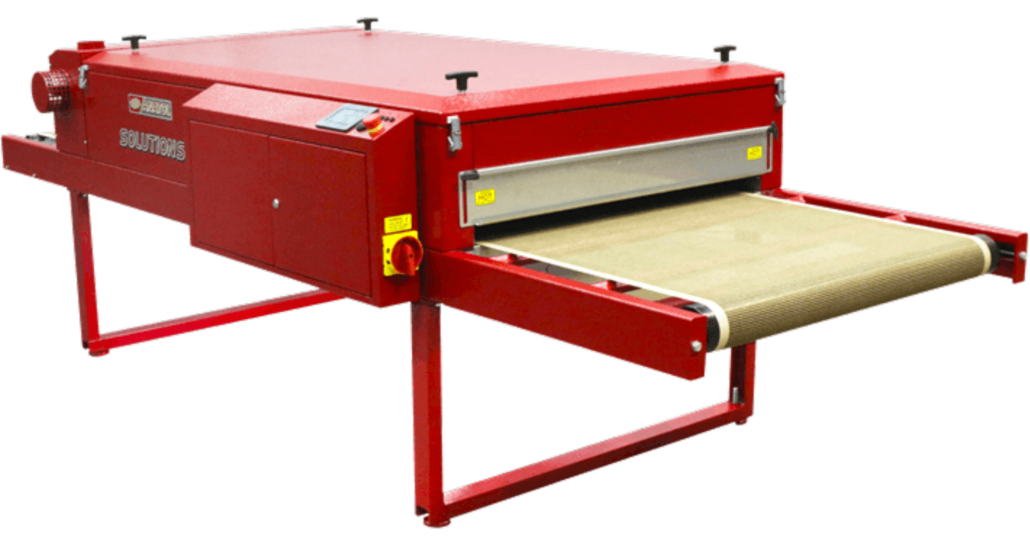

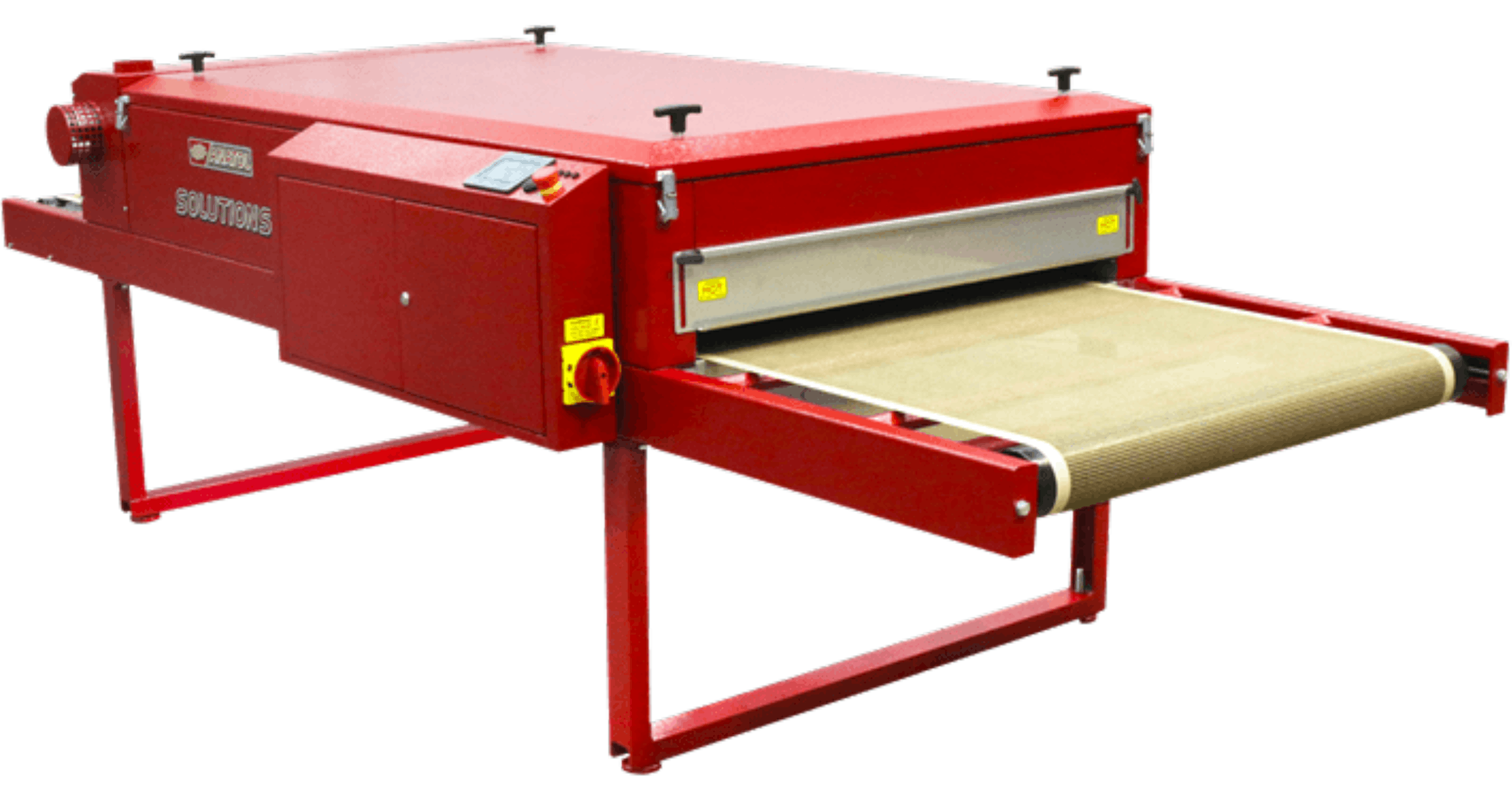

Anatol Solutions Tunnel Dryer SED-2404A-5850
The Energy Efficient and Affordable Dryer Solution.
Available in four basic models in configurations of:
24” belt width/4’ heat – 60” belt width/10’ heat
When gas is not an option, Anatol electric screen printing conveyor dryers are the perfect Solution. The Solutions Series dryers are ideal for t-shirt and textile printers looking for an efficient and affordable curing unit. They feature more ceramic heating panels than similar dryers for even heat throughout the chamber. The Solutions dryers feature the same double-wall construction as Anatol’s gas dryers, re-enforced with high-efficiency thermal insulation. Solutions Series electric dryers offer programmable temperature controls with automatic cool-down. Solutions electric dryers are available in six configurations, with four basic models, from 24” belts with 4’ of heat up to 60” belts with 10’ of heat.
- Digital control panel
- Solid-state variable belt speed control, set in ft/min or meters/min
- Programmable temperature controller (accuracy: +/- 1º)
- Automatic controlled start up and cool down mode
- Reversible belt direction
- 12-48 ceramic heating elements
- Adjustable heat panels (raise or lower)
- Industrial grade AC motor
- Double wall insulation with galvanized interior
- Heavy-duty multi-section construction
- Air-cooled control cabinet
- Stainless steel slide out filters (larger models only)
- Adjustable infeed/outfeed openings
- Teflon-coated fiberglass belt
- Heavy-duty conveyor rollers
