Description

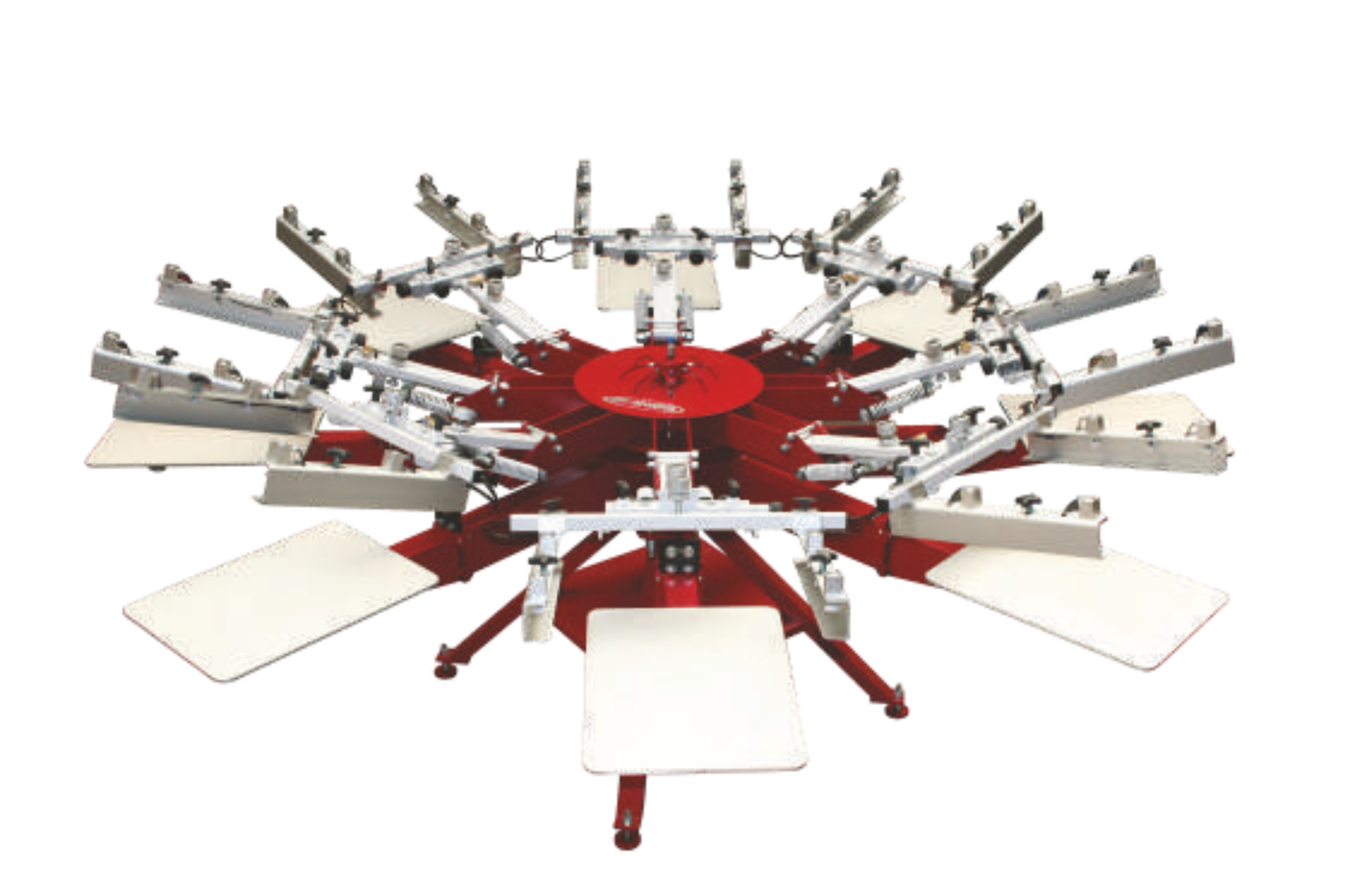

Thunder Manual Screen Printing Press
Built with Anatols industrial-strength construction and innovative design.
Maximum Screen Size 26³ x 36³
Maximum Print Area 21³ x 28³
Available in configurations of:
4 stations/4 colors up to 12 stations/12 colors.
Available in configurations of 4 stations/4 colors “ 12 stations/12 colors
Maximum Screen Size 26³ x 36³
Maximum Print Area 21³ x 28³
The Thunder is an industrial-grade manual screen printing press designed to handle high-demand printing while minimizing wear and tear on the user. The most durable manual screen printing machine on the market, the Thunder is an excellent addition as a sampling or production press. It has the same pallet arm and carousel design as the Anatol automatic t-shirt screen printing machines. The dual bearing system provides easy movement throughout the day. The Thunder is available with possible configurations of 4 Station/4 Colors, 4 Station/6 Colors, 6 Station/6 Colors, 4 Station/8 Colors, 8 Station/8 Colors, 10 Station/10 Colors and 12 Station/12 Colors.
- Gauged three-point micro-registration movement is adjustable on three points (front to back, side to side and rotational)

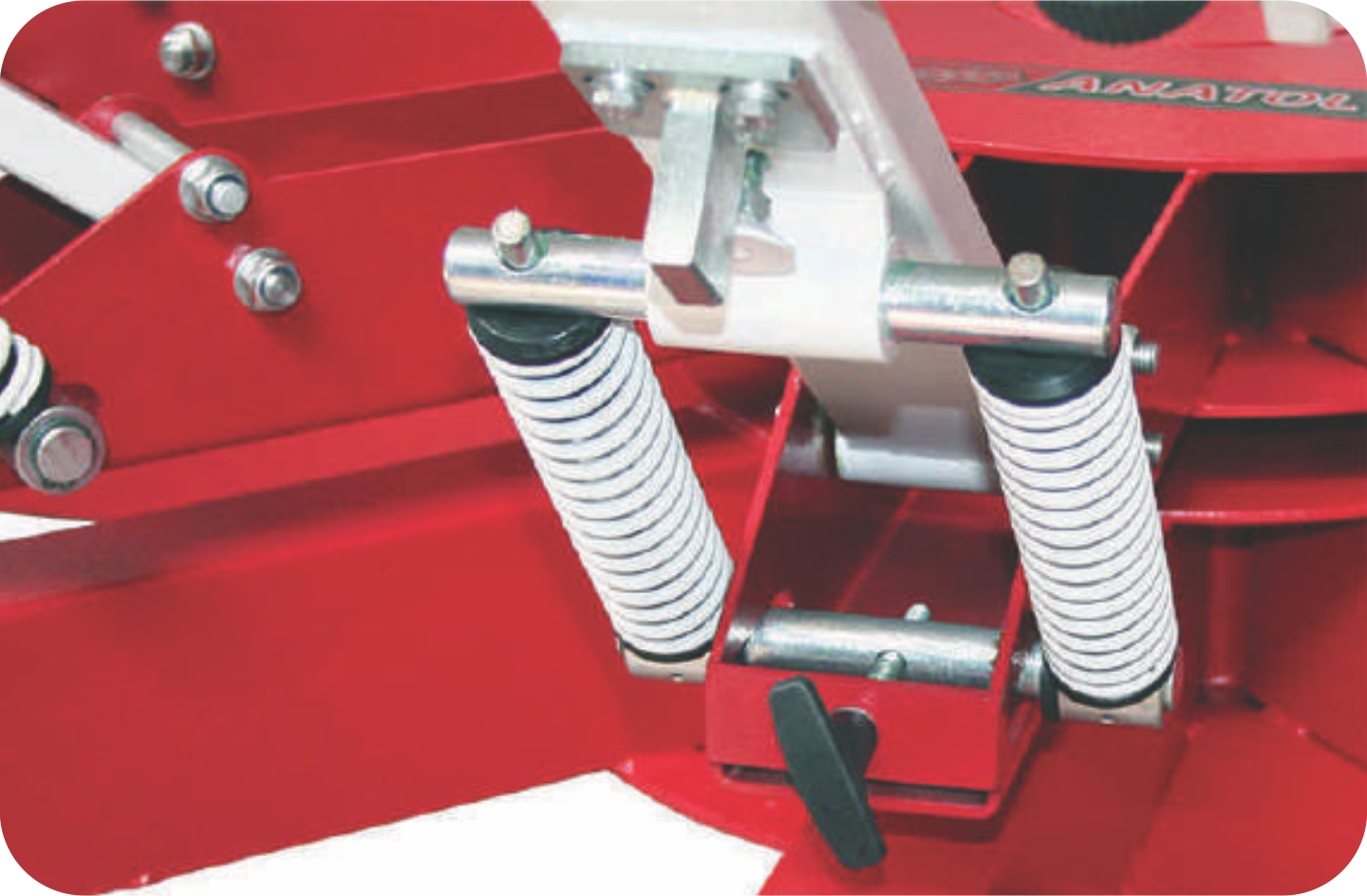

- Dual adjustable, guided spring tensioning system that provides a smooth lift and lower

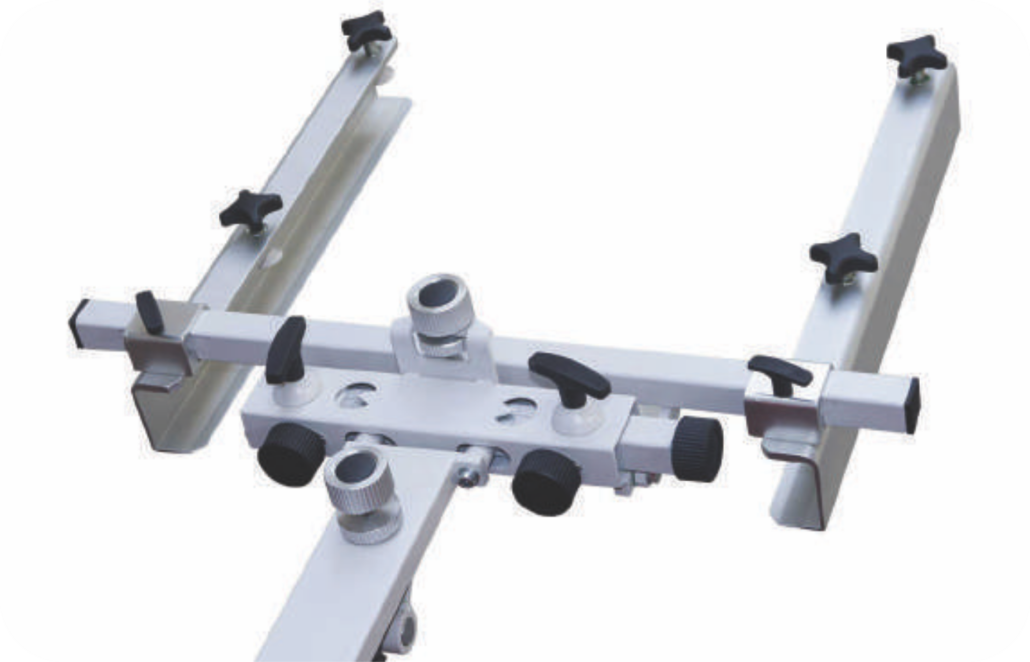

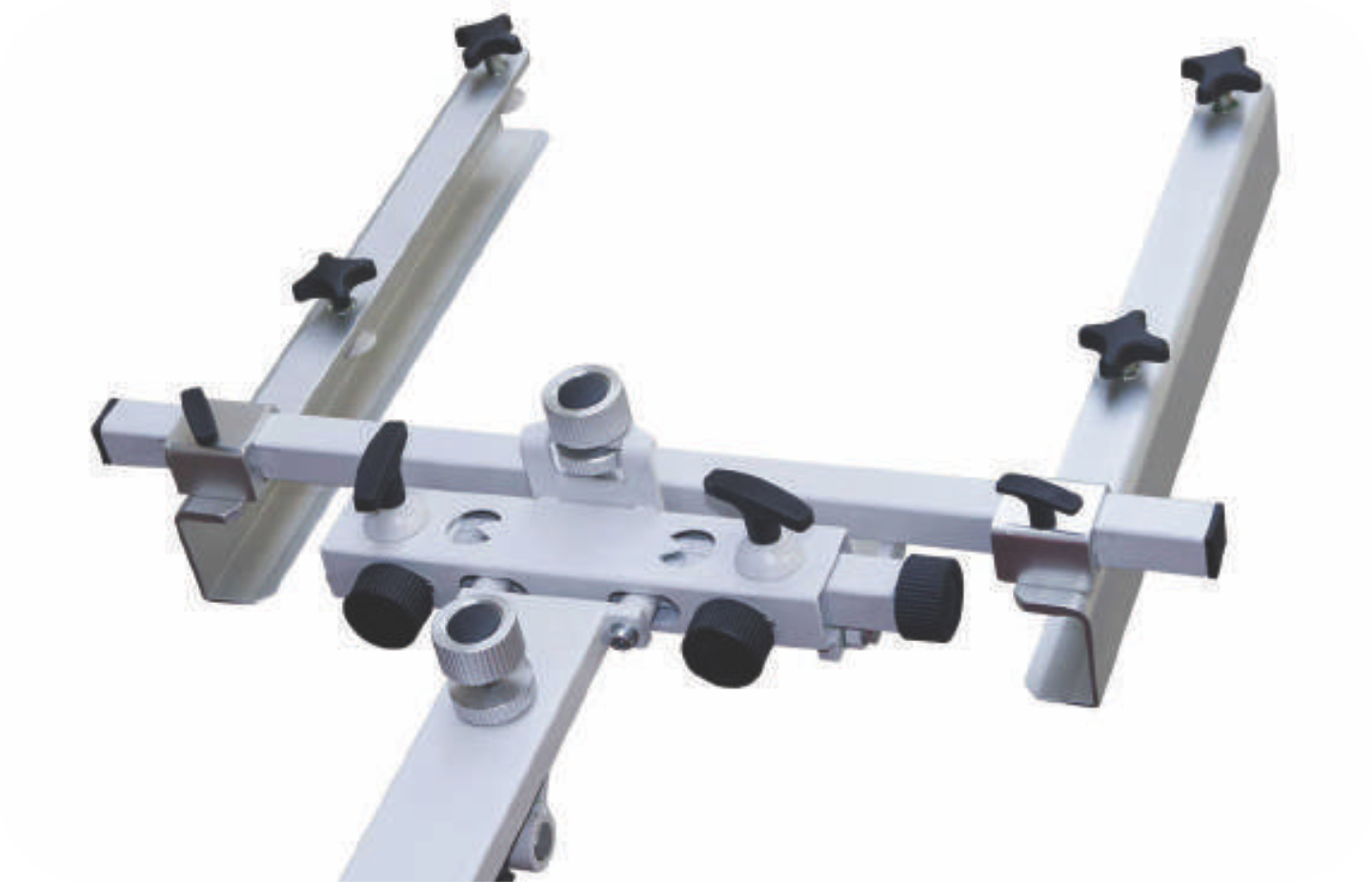

- Side screen clamps keep screens in registration
- Off-contact and screen pitch adjustments on each print head
- All-Heads Down (on models 4s/4c, 6s/6c and 8s/8c) design lets you print any color from any print head
- 100% tool-less setups and operation – Adjust off-contact distance, screen angle, micro-registration, print head spring tension and more with no tools required
- 16″ x 22″ rubber-coated aluminum pallets included
- Choice of quick release or slide style pallets
- Mix and match side or back clamps at no additional charge

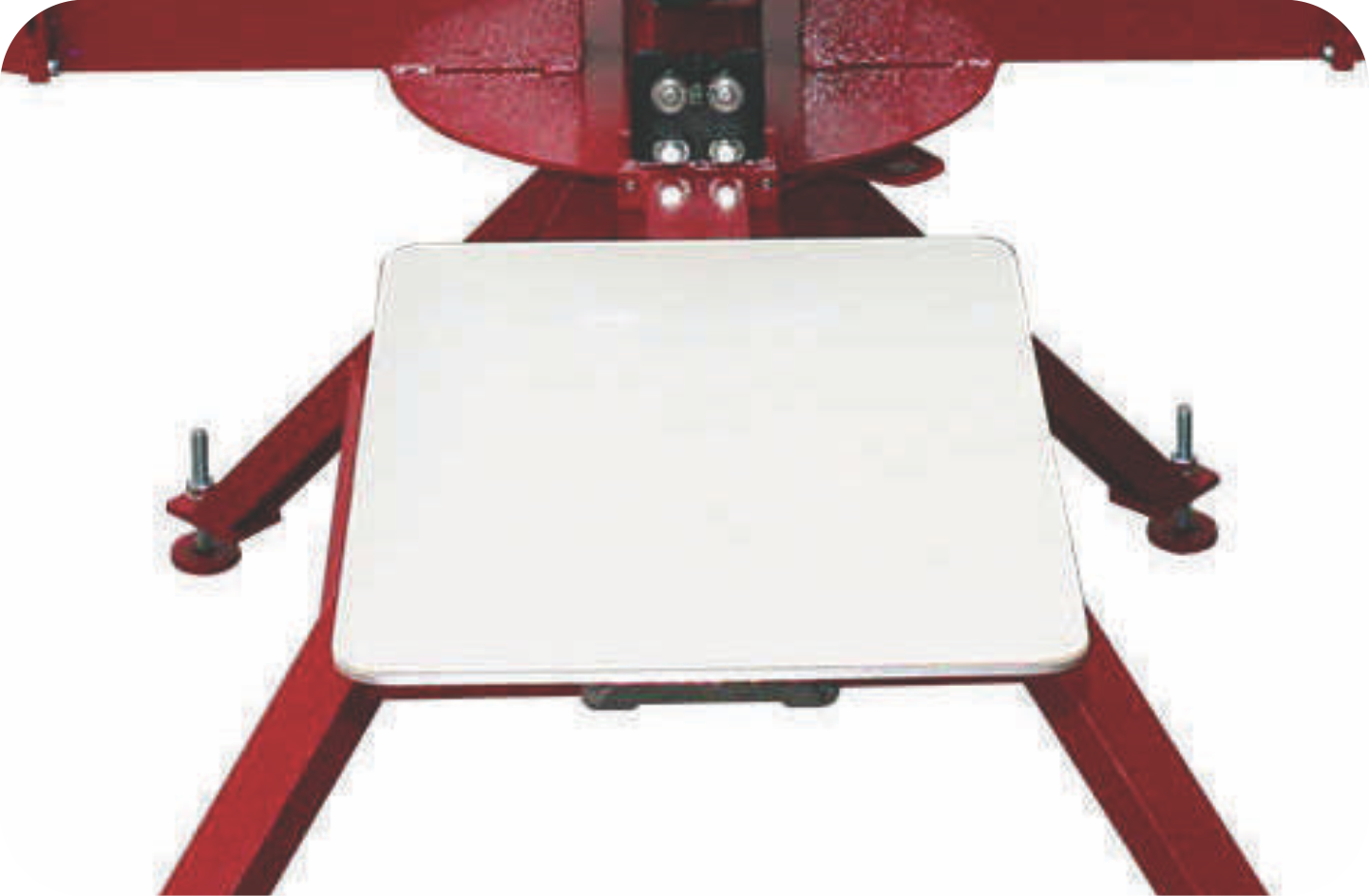

- Four-point pallet leveling system
- Adjustable side screen clamps
- Swivel feet on screen clamps to prevent movement while tightening
- Double-bearing registration locks ensure top print quality with multi-color jobs
- Heavy-duty steel frame

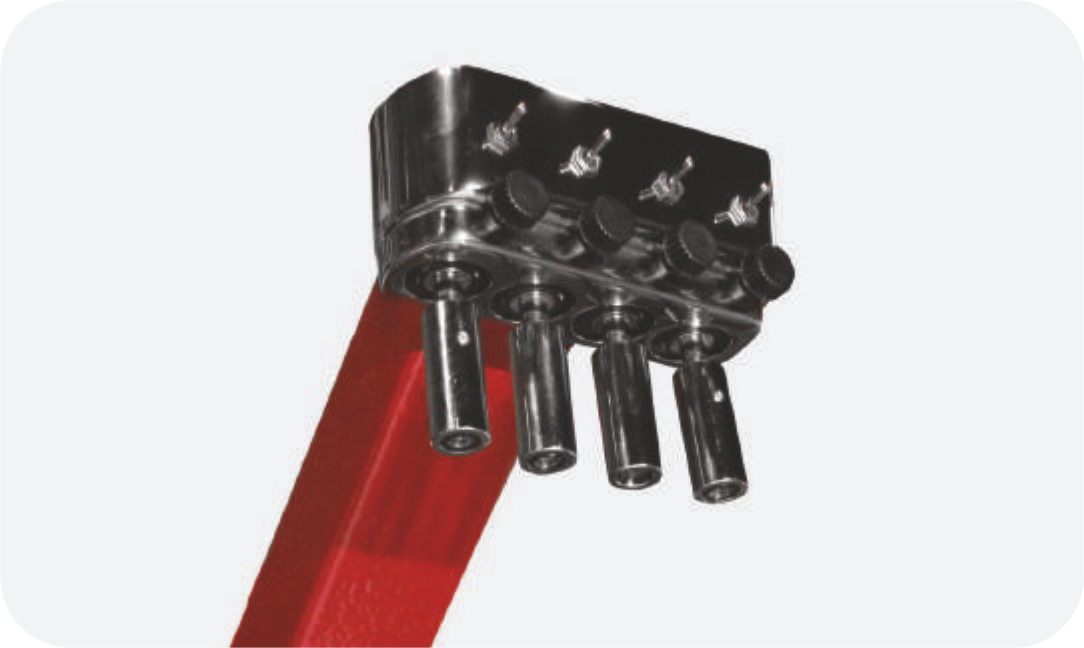

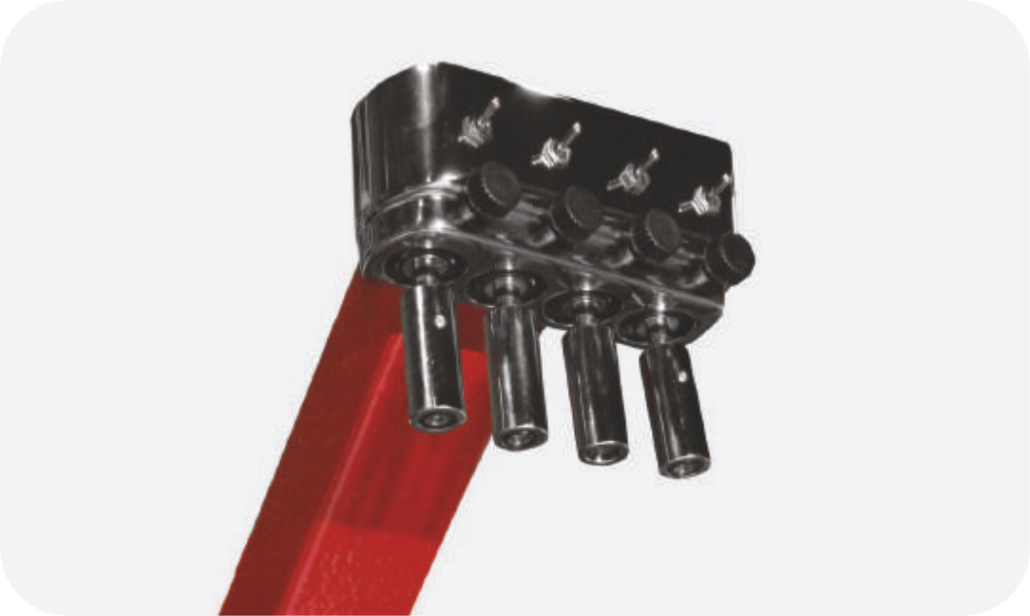

- Upper and lower column bearings for smooth, quick operation
- Sturdy solid aluminum pallets
- Ergonomically designed for ease of use
- Small footprint accommodates tight spaces
- Laser alignment system for quick and easy apparel alignment
- Four independently-adjustable straight red lasers
