Description

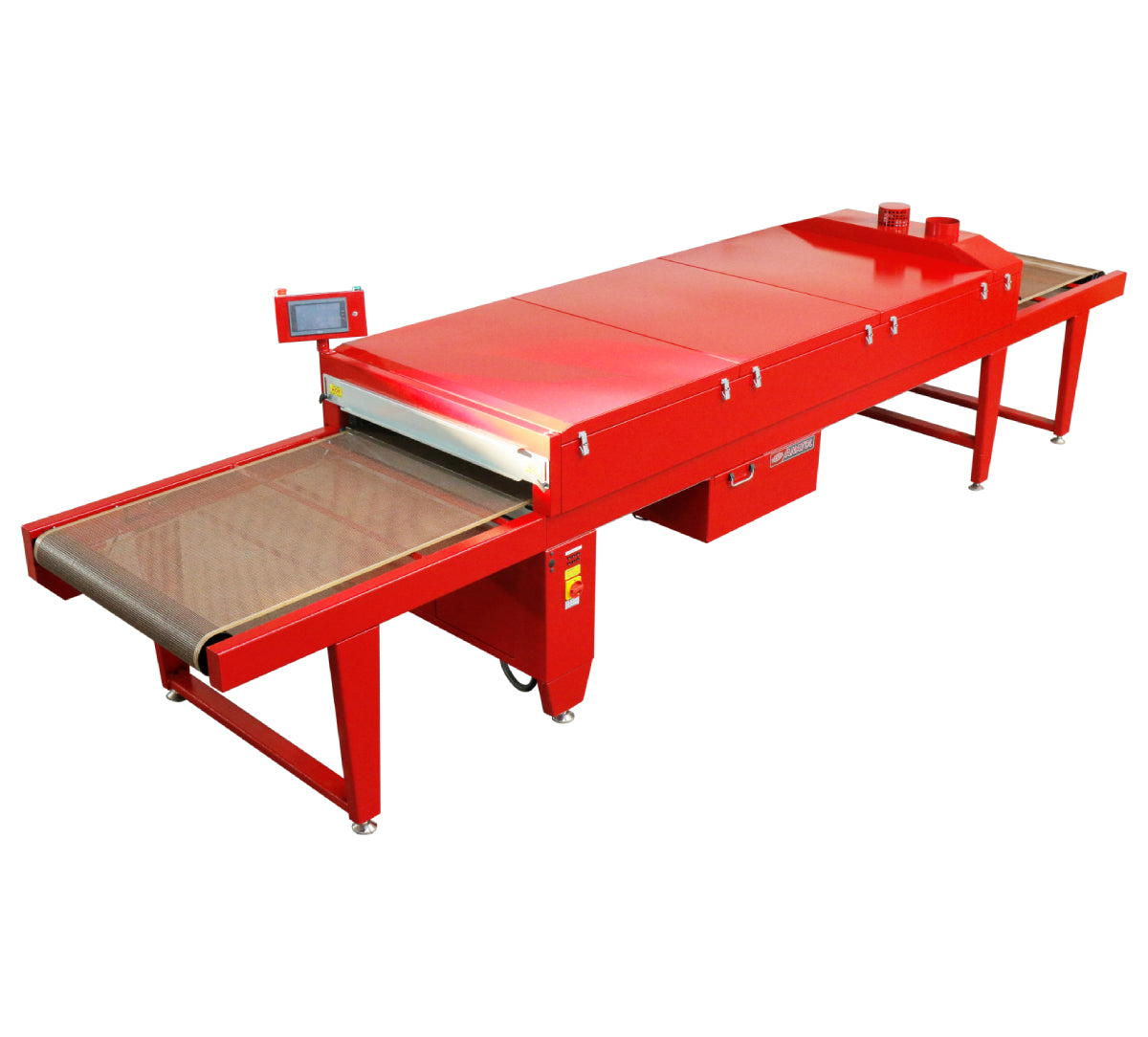

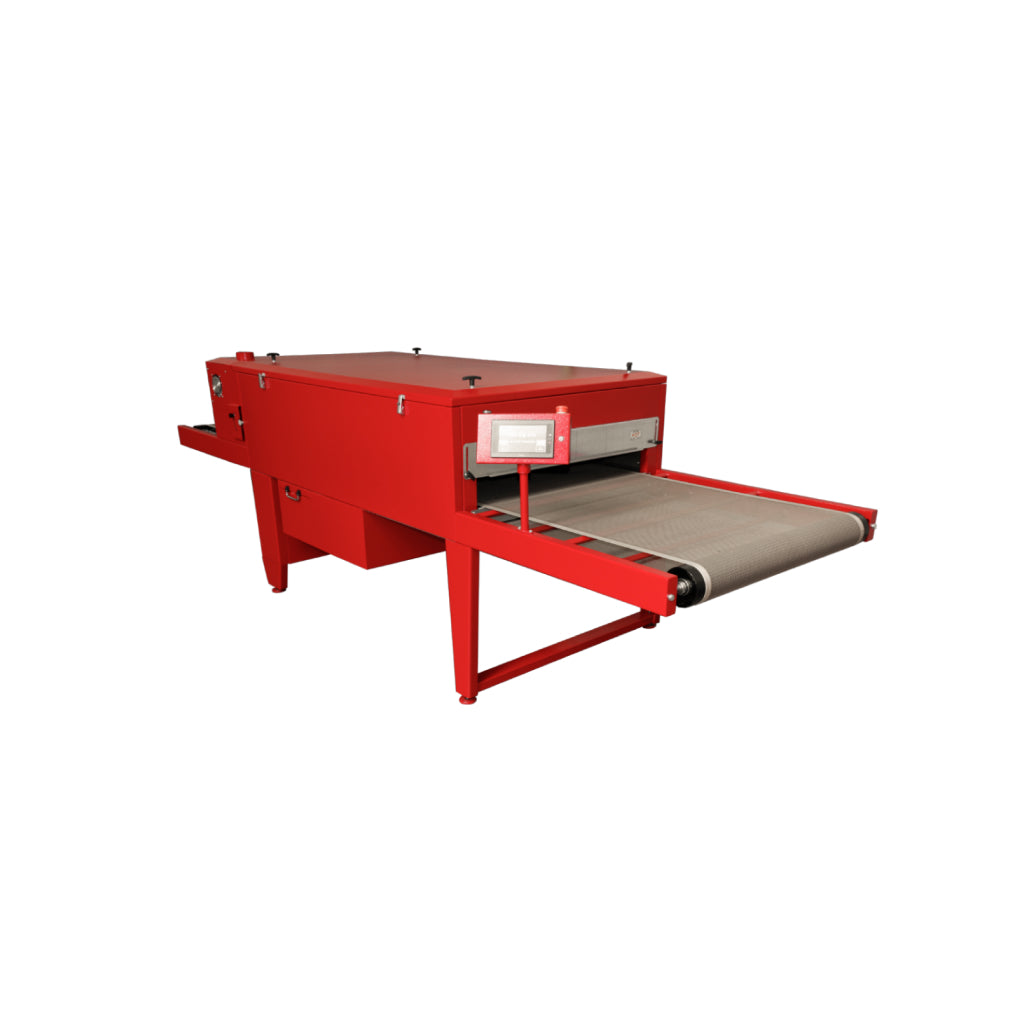

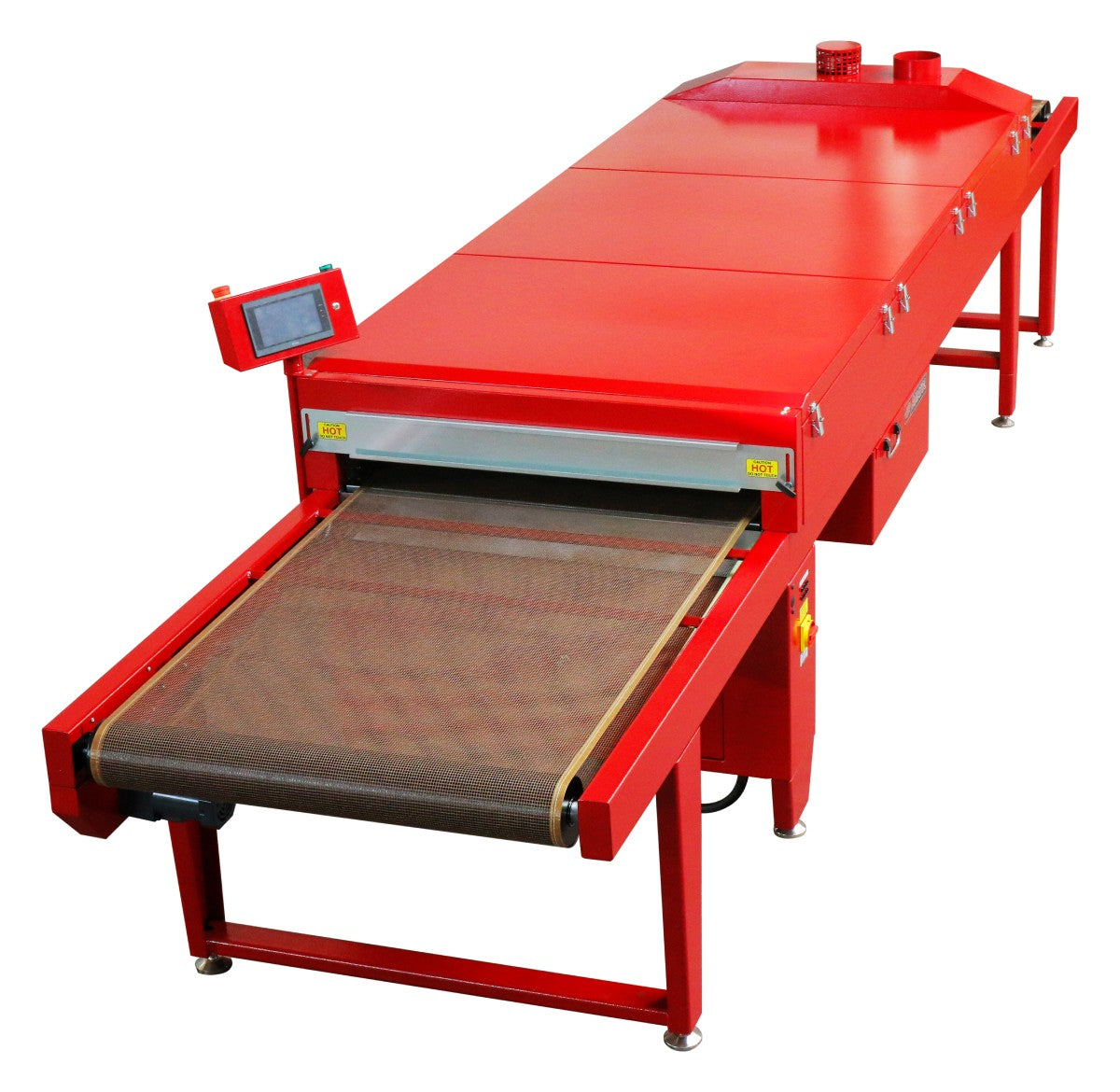

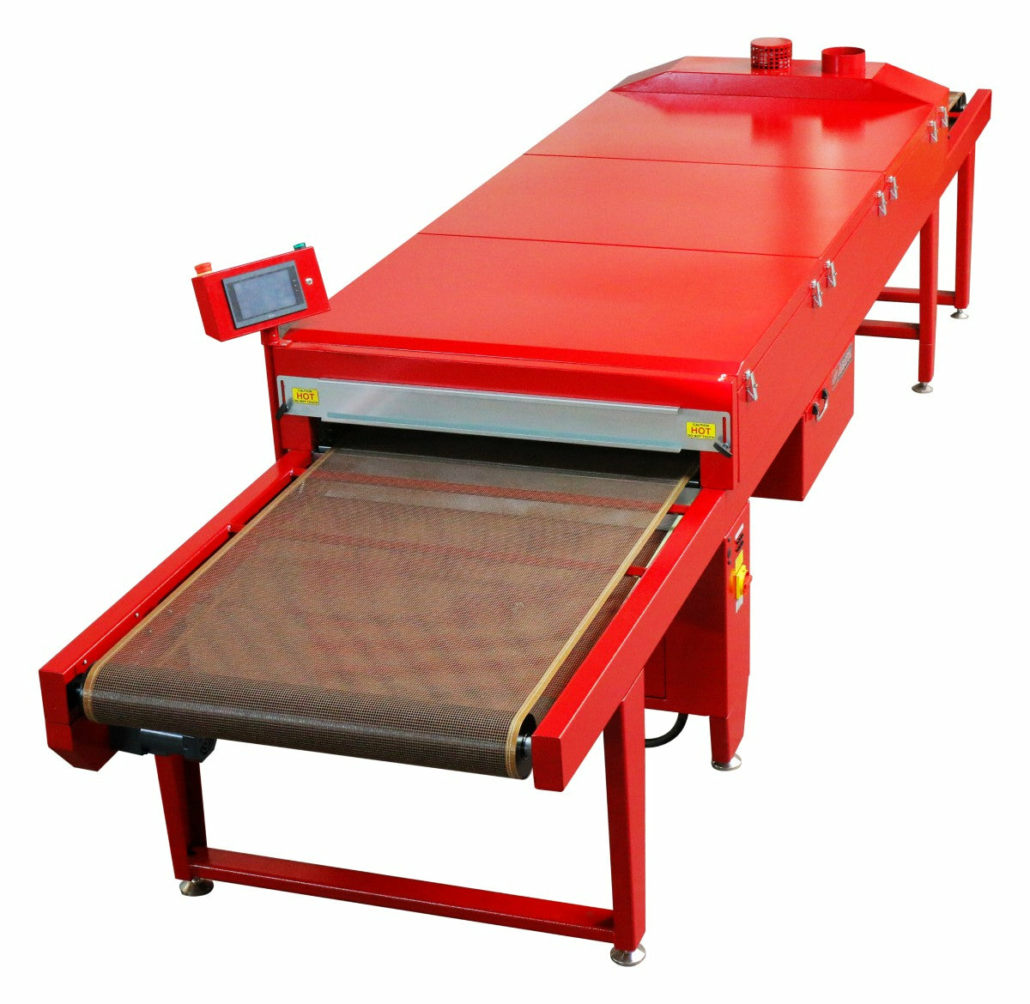

Ultra Electric Dryer
Anatol’s Ultra forced air electric conveyor dryer is perfect for curing water-based and plastisol inks quickly and efficiently when gas is not an option.
Available in five different configurations:
Models available from 36” belt width/6’ heat chamber up to 60” belt width/10’ heat chamber
- 7” touchscreen control panel
- Temperature control with accuracy of +/- 1°F
- Set desired cure time and the dryer will automatically determine the proper belt speed
- Save and recall up to 16 jobs for fast setups
- Work Schedule mode allows you to program automatic startup and cool down based on the day of the week
- View temperature and energy consumption plots in real time
Heating System
- 5” blower exchanges air in the chamber over 12 times per minute to cure water-based inks quickly and efficiently
- Long-lasting ceramic heating elements ensure even distribution of heat throughout the chamber
- Overheating alarm warns you when dryer exceeds the temperature set by the user
- Adjustable infeed/outfeed openings to accommodate a wide variety of substrates
Construction
- Double wall construction with galvanized interior
- Heavy-duty multi-section construction
- Air cooled case keeps heat in and ensures the dryer stays cool to the touch
- High efficiency thermal insulation keeps heat from migrating into the workplace
Belt
- Teflon-coated fiberglass belt for maximum durability
- Heavy-duty conveyor rollers
- Industrial-grade AC motor
