Description
BENEFITS
- Dual print settings including 900 dpi and 1200 dpi
- Twice the resolution of its predecessors
- Supports frame sizes up to 30” x 40”
- Capable of producing detailed & extremely accurate prints in under a minute
- Better density than most film and liquid ink CTS systems.
Dimensions: Spyder III – 32” x 49” x 61” (79 cm x 124 cm x 155 cm) | Weight: 505 lbs (229 kg)
SPECIAL FEATURES
The Spyder family of products comes standard with 3 point registration system compatible with most presses. An MHM compatible pin registration option is also available. When combined with the Spyder family of products, both can reduce press set up time to mere minutes.
SPECIFICATIONS
EQUIPMENT SPECIFICATIONS

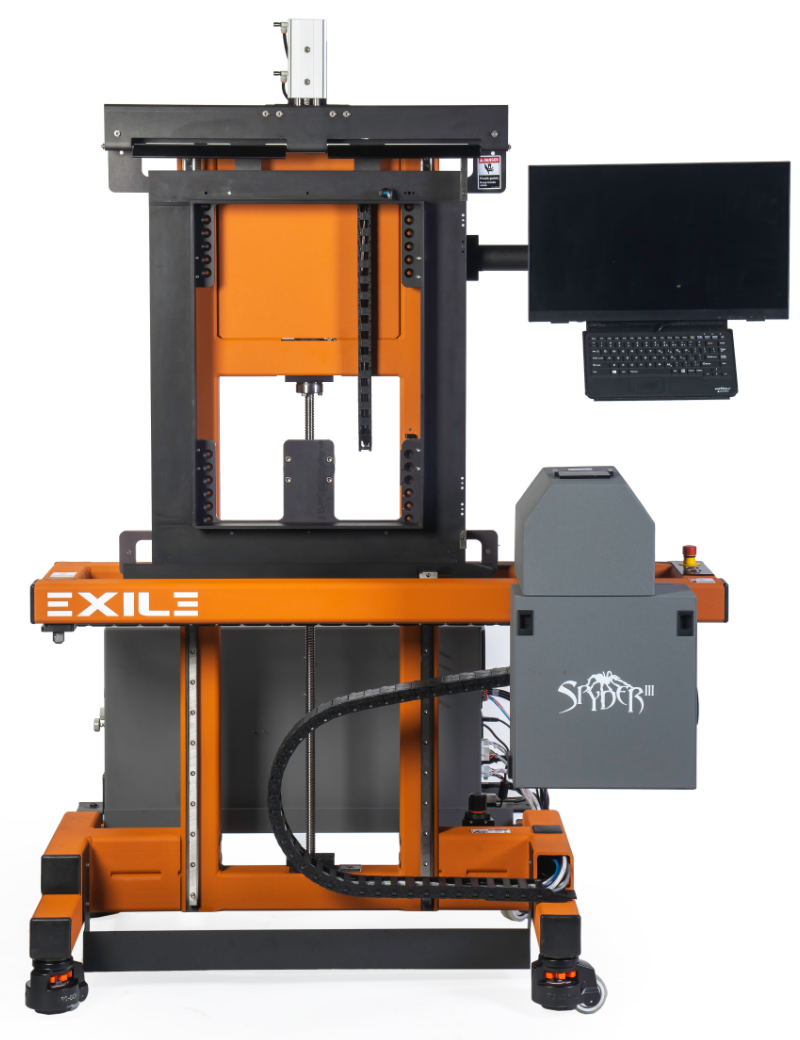

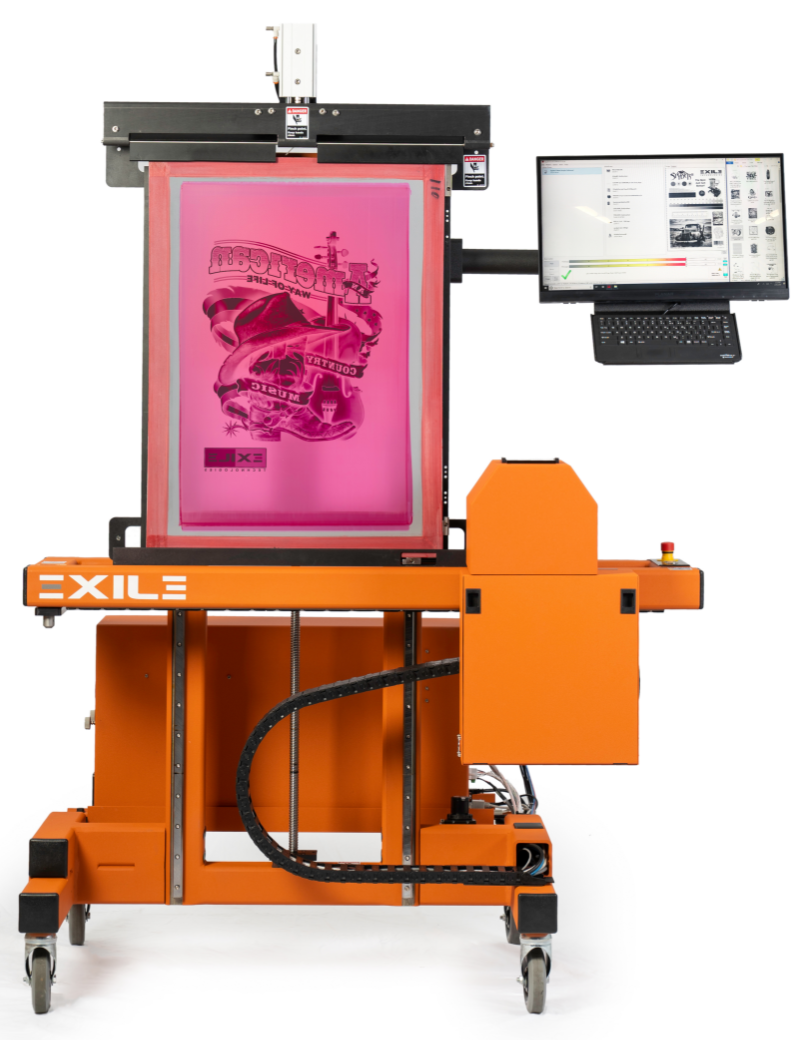

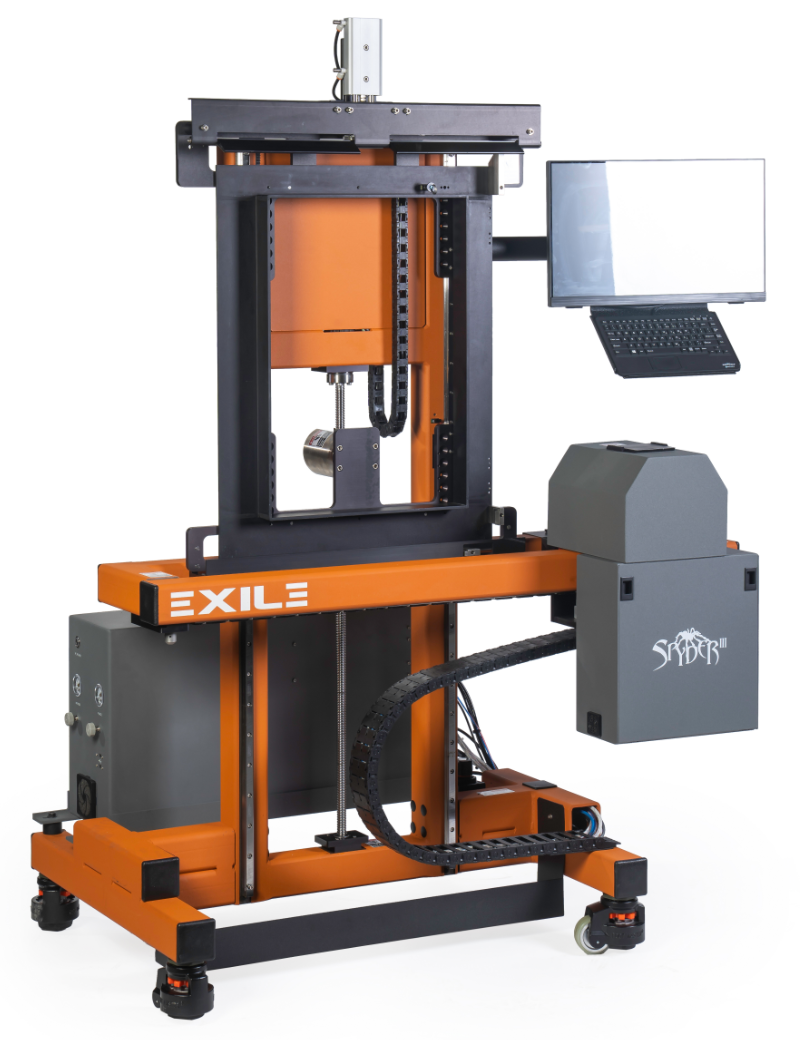

Model: Spyder III Computer-to-Screen System
Technology: Phase-change inkjet / Solid ink
Resolution: 1200 dpi
Halftone Capability: 85 lpi @ 1200 dpi
Max Media Size: 30 in x 40 in (76 cm x 101 cm)
Max Image Size: 25 in x 30 in (63 cm x 76 cm)
Imaging Speed: Approximately 1.7 sq ft/min @ 1200 dpi / Approximately 2.1 sq ft/min @ 900 dpi
Accuracy: .001” from screen to screen
Power Requirements: 120v/220v 50-60 HZ 15 amp
Compressed Air: Required
Network: Ethernet
Operating Temperature: 50oF to 86oF / 10oC to 30oC
Operating Humidity: 35% to 75% non-condensing
Ink Type: Solid block / Water dispersible photo resist mask
Dimensions: 32 in x 49 in x 61 in (79 cm x 124 cm x 155 cm)
Weight: 505 lbs (229 kg)
RIP SPECIFICATIONS
RIP Type: RTI Harlequin RIP
Platform: Mac and PC available
Screening: AM and FM (stochastic) screening available
Input File Formats: Postscript III, PDF, EPS, TIFF
RIP Options: Auto Trapping, Color Management / Proofing, Hybrid Screening
