Description

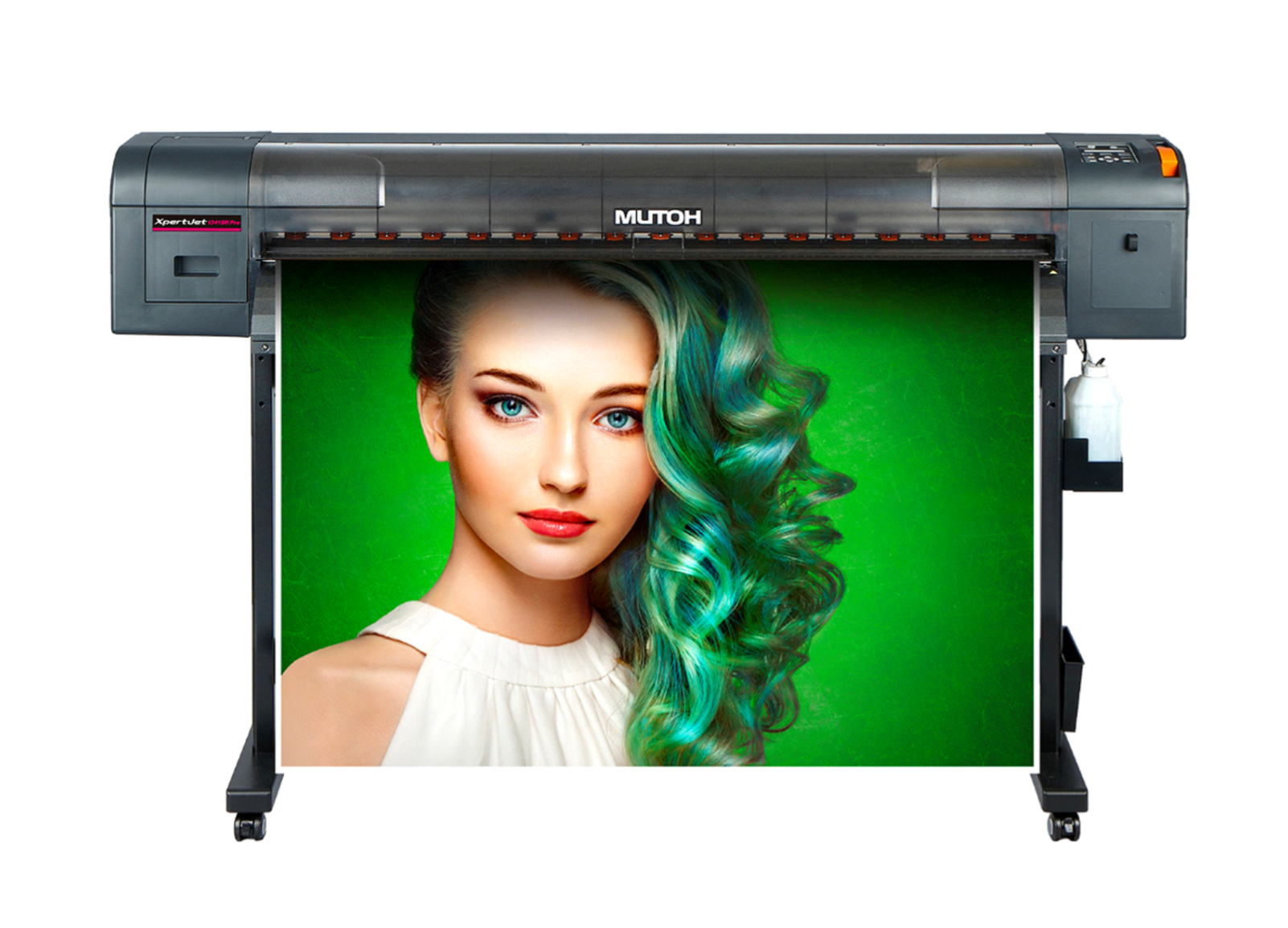

MUTOH 1371mm wide Eco-Solvent Vinyl Printer
Single head CMYK roll-to-roll
‘Built for Professionals’ with made-in-Japan quality the XPJ-1341SR Pro is lightweight (86kg) with a small footprint (1,916mm x 685mm) and delivers high productivity and high print quality ensuring perfectly balanced cost and performance in an easy to use eco-solvent printer.
Featuring MUTOH’s unique technologies of automation and efficiency the XPJ-1341SR Pro consistently delivers the highest quality prints with minimal user effort across a wide range of media including vinyl, banner, and canvas.
MUTOH XPJ-1341SR-P Brochure
High Media Compatibility
Head Height Setting
The optimal print head height can be selected from 3 stages depending on the media being used. This reduces the risk of contact and also provides the highest print quality.
![mutoh-xpj-1341-sr-pro-media-lever-high.jpg](https://static.wixstatic.com/media/58a0fc_f6d83eba16084460b371be86b3938354~mv2.jpg/v1/fill/w_270,h_175,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/mutoh-xpj-1341-sr-pro-media-lever-high.jpg)
High 2.5mm
(Media up to 1.3mm thick)
![mutoh-xpj-1341-sr-pro-media-lever-mid.jpg](https://static.wixstatic.com/media/58a0fc_cabfb8b9f337450aaedc925c85ed070e~mv2.jpg/v1/fill/w_270,h_175,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/mutoh-xpj-1341-sr-pro-media-lever-mid.jpg)
Middle 2.0mm
(Media up to 0.8mm thick)
![mutoh-xpj-1341-sr-pro-media-lever-down.jpg](https://static.wixstatic.com/media/58a0fc_92263382c0854ab38e6bf9bced3c2403~mv2.jpg/v1/fill/w_270,h_175,al_c,q_80,usm_0.66_1.00_0.01,enc_auto/mutoh-xpj-1341-sr-pro-media-lever-down.jpg)
Low 1.5 mm
(Media up to 0.3mm thick)
![mutoh-xpj-1341-sr-pro-pressure-rollers.jpg](https://static.wixstatic.com/media/58a0fc_08b45b8aece94ef0a12891218185e490~mv2.jpg/v1/crop/x_0,y_21,w_320,h_133/fill/w_320,h_135,al_c,lg_1,q_80,enc_auto/mutoh-xpj-1341-sr-pro-pressure-rollers.jpg)
Pressure Roller Control
To prevent cockling, the pressure rollers can be individually canceled to finely adjust the pressure applied to the media. A wide range of media types can be fed under optimal conditions.
Optional 30kg take-up unit and media holder for a smoother media handling capability
![mutoh-xpj-1341-sr-pro-take-up.jpg](https://static.wixstatic.com/media/58a0fc_96c8ab4e433343cebd9fe74ae27ab17a~mv2.jpg/v1/fill/w_270,h_180,al_c,q_80,enc_auto/mutoh-xpj-1341-sr-pro-take-up.jpg)
30kg take-up unit
+
![mutoh-xpj-1341-sr-pro-media-holder.jpg](https://static.wixstatic.com/media/58a0fc_a0e2edd81f2f40c88d6104ceb6b50d50~mv2.jpg/v1/fill/w_270,h_180,al_c,q_80,enc_auto/mutoh-xpj-1341-sr-pro-media-holder.jpg)
Media holder for feed
