DIGITAL PRINTING SERIES

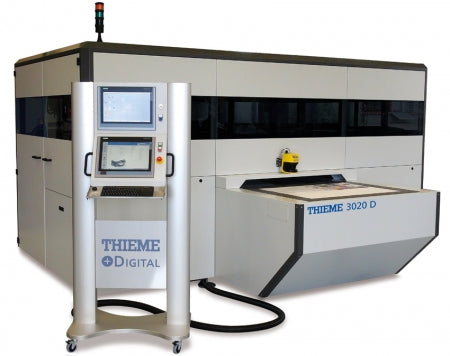

THIEME 3000 D
Flatbed digital printing machines with automatic removal of substrates after printing.
The open system of the THIEME 3000 D allows unrestricted access to all parameters defining and therefore individual adaptations. So we can give our customers the freedom for the first time to select the formats and machine concepts in line with their requirements.
- The linking of digital printing with proven Thieme machine technology for rigid and flexible materials
- Nearly unlimited printing formats from the matchbox to the facades of houses
- Easy linking of modules to complex printing systems “ including screen-print
- Digital-printing hybrid systems Combines the advantages of screen printing with the preferences of digital printing
- Customized solutions for integration into the industrial environment
Why THIEME 3000 D?
- Flexible world of Digital Printing
- Ink
- Format
- Transport
- Sturdy digital printing system for diverse applications
- Ability to integrate special ink systems
- Number and arrangement of print heads and ink channels can be configured according to the application
- Ideal complementary technology for screen printing using proven
Thieme technology žMade in Germanyœ - Industrial Digital Printing
Specifics
- Multipass system for the highest demands
- High-precision linear drive technology enables excellent printing quality
- Preset common printing modes and additional access to all process parameters
- Individually desired formats can be realised
- The degree of automation can be increased by addition of Thieme technology
- The number and position of lay-on pins, switchable vacuum fields, and table cooling can be optionally integrated
- Optional switchable vacuum fields and table cooling
- Extensive options packages
- Versatile machine concept (e.g. expansion of the number of print heads, upgrades)
- Special formats on request
- Certified UV inks (Cyan/Magenta/Yellow/Black/Primer/Topcoat)
- Certified water-based inks (Cyan/Magenta/Yellow/Black)
Technical Data
| Machine type | 3020 D | 3030 D |
|---|---|---|
| Print size max. [mm] | 780×1080 | 1030×1420 |
| Outer dimensions L x B [mm] | 4220×3730 | 4470×4410 |
| Machins height [mm] | 2260 | 2260 |
| Druckleistung bei 4 Druckkopfreihen Ãn bester Qualität [Bogen/H] |
32 | 26 |
| Substrate thickness max. [mm] 3/4-automatically | 0,1 – 16 | |
| Substrate thickness max. [mm] 1/2-automatically | to 50 | |
| Substrate weight max. [Kg/m²] 3/4-automatically | 7 | |
| Substrate weight max. [Kg/m²] 1/2-automatically | 20 | |
| RIP | Caldera Grand RIP+ | |
| Printheads | Konica Minolta 1024 M | |
| System resolution max. | 2160 x 1600 dpi | |
| Positioning accuracy substrat | +/- 100 μm | |
| Colour channel | 4 – 10 | |
| Option | Light-color, white | |
| Ink consumption [Basis Sun Chemical] | ca. 10 ml/m² | |
| UV-Drying | 200 W/cm | |
| Power supply [V] | 400/230 | |
| Circuit connection [kW] | 18 | |
| Needed air pressure [bar] | 8 | |
| Data interface | Ethernet | |
| All technical information is not binding and is subject to change. | ||
