SCREEN PRINTING SERIES

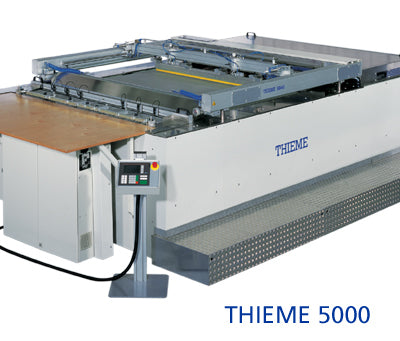

THIEME 5000
Fully automatic screen printing system with rotary grippers. Precision built, short set-up times. Absolute reliability for multi-shift operation. High precision and speed through servo drive motors.
- Precision built
- Maximum volume output, also for different formats and materials
- Short set-up times
- High precision and speed through servo driving force
- Machine job data storage memory
- Complete machine programmabiltiy
Why THIEME 5000?
- Fully automatic with manual loading opportunity
- High flexibility of the substrates from 0.1 to 6 mm
- Short setup times by tool-free setting
- Fast Investment amortization due to low staffing
- Highest Productivity
- Absolute reliability in multi-shift operation
- Thieme-Quality žMade in Germanyœ
Specifics
- Material handling by circulating gripper system
- Automatic sheet positioning
- Precision and speed through servo drive technology
- Printing parameters stored for recurring print jobs
- Exceptional print results from THIEME designed table and original THIEME Squeegee Unit
- Loading / unloading on pallets
- Durable machine concept, usable as a ¾ auto- machine
- Individual selection of a machine options based on customer requirements
- Extensive Feeder options (single sheet, scale, leading / trailing edge)
Technical data
| Type of machine | 5020 | 5030 | 5040 | 5050 | 5060 | 5070 |
|---|---|---|---|---|---|---|
| Print size [mm] | 750×1050 | 1000×1400 | 1200×1600 | 1400×1800 | 1550×2100 | 1600×2600 |
| Frame size [mm] | 1200×1400 | 1450×1750 | 1700×2000 | 1900×2200 | 2055×2500 | 2200×3200 |
| Table-External dimensions [mm] | 869×1214 | 1098×1564 | 1288×1814 | 1479×2014 | 1669×2314 | 1779×2814 |
| Vacuum field size [mm] | 780×1080 | 1020×1440 | 1220×1640 | 1420×1840 | 1580×2140 | 1640×2640 |
| Sheet size max. [mm] | 800×1100 | 1050×1450 | 1250×1650 | 1450×1850 | 1600×2150 | 1660×2660 |
| Screen fine tuning X-X-Y [mm] | +/- 5 | |||||
| Squeegee speed [m/sec] | 0,3-1,5 | |||||
| Range of substrate thickness [mm] | 0,1-6 | |||||
| Weight of printing material [g/m²] | 120-3000 | |||||
| Gripper frame | approx. 8 | |||||
| Circuit connection [kW] | 8,4 | |||||
| Power supply [V] | 230/60, 400/50 | |||||
| Print speed on request. All technical information are not binding and subject to change. |
||||||
